ZA8 - slide-up seat for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20T (2000 diesel turbo ) drive 2WD (two-wheel drive ) Manufacture period 06.1991 - 01.1997 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
ｱﾝｼｬﾝﾃ	01.1997 - ...	シート アッセンブリー

Open full screen picture Up to the top

ZA8160 - leg assembly, seat lower ZA8551M - slide assembly, second ZA8615M - frame, slide ZA8641M - lock,ｼ-ﾄ ZA8665M - frame, slide ZA8752M - hook, curtain ZA8810M - cover, length ZA8810P - cover, length ZA8864M - plate, rail ZA8869M - lock,ｼ-ﾄ ZA8869N - bracket, switch ZA8869P - bracket, switch ZA8869Q - bracket, switch ZA8913M - bracket, cylinder ZA8926N - pin, clevis ZA8929M - bracket assembly, bearing

---

Applies for models	Manufacture period	Spec
ｱﾝｼｬﾝﾃ	01.1997 - ...	シート スライド

Open full screen picture Up to the top

ZA8711P - plate, lock ZA8711Q - plate, lock ZA8811N - base, leg ZA8860M - bracket assembly, base ZA8860N - bracket assembly, base ZA8860P - bracket assembly, base ZA8864U - plate ZA8869U - lock,ｼ-ﾄ

---

Applies for models	Manufacture period	Spec
ｱﾝｼｬﾝﾃ	01.1997 - ...	シート ベース

Open full screen picture Up to the top

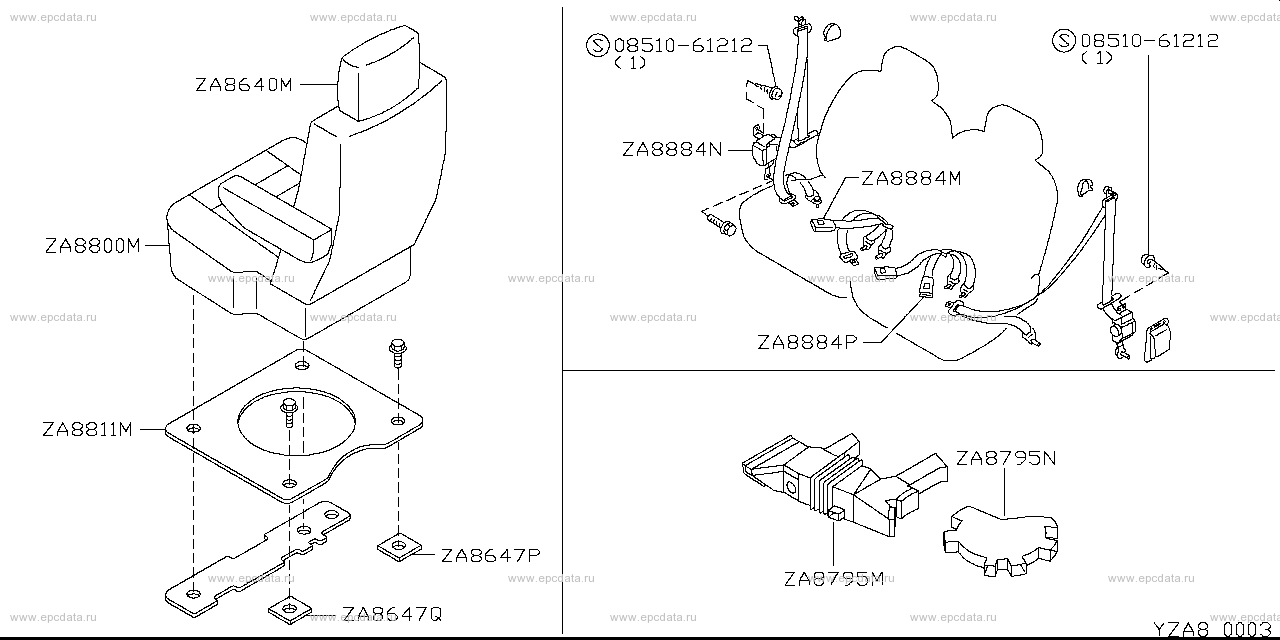

0851061212 ZA8640M - head rest assembly ZA8647P - plate,A second RH seat ZA8647Q - plate,C second RH seat ZA8795M - duct, rear heater outlet C ZA8795N - duct, rear heater outlet D ZA8800M - seat assembly, second ZA8811M - leg assembly, second ZA8884M - belt assembly ZA8884N - belt assembly, rear seat tag RH ZA8884P - belt assembly, rear seat tag

---

Applies for models	Manufacture period	Spec
ｱﾝｼｬﾝﾃ	01.1997 - ...	レングス カバー

Open full screen picture Up to the top

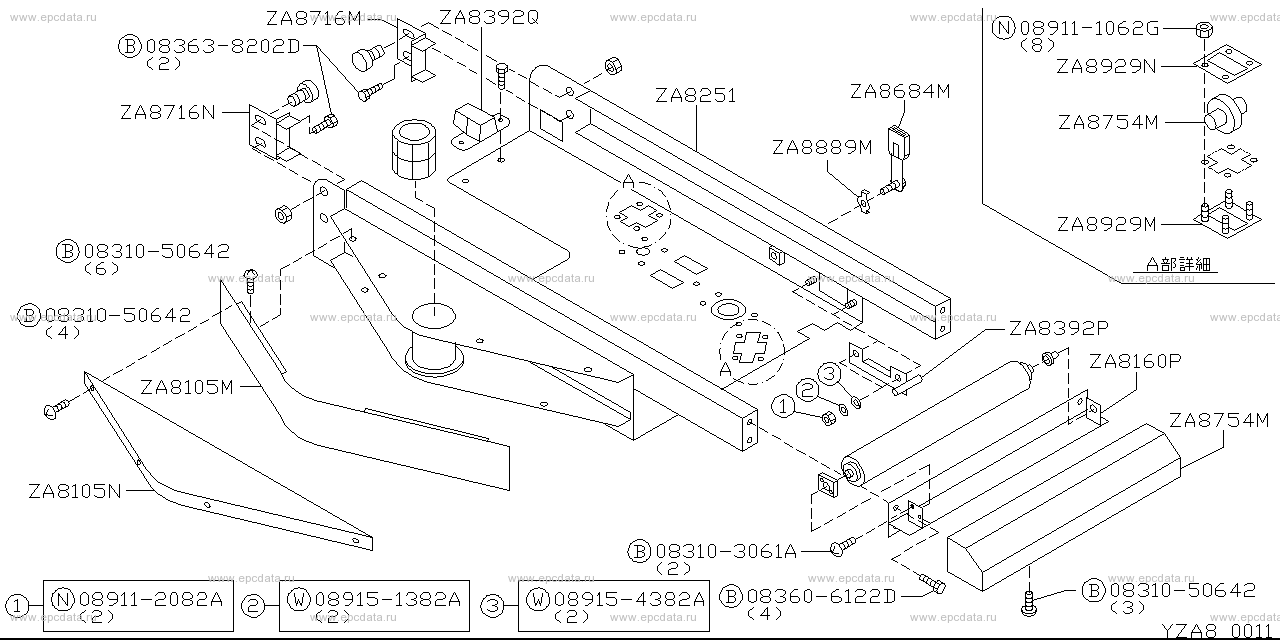

0831050642 083606122D 083638202D 089111062G 089112082A 089151382A 089154382A ZA8105M - leg, cover ZA8105N - leg, cover ZA8160P - bracket ZA8251 - swivel assembly, rear seat ZA8392P - striker, second seat ZA8392Q - striker, second seat ZA8684M - belt, buckle ZA8716M - cover, rail RH ZA8716N - cover, rail LH ZA8754M - cover, curtain ZA8889M - plate, belt anchor ZA8929M - bracket assembly, bearing ZA8929N - bracket assembly, bearing

---

Applies for models	Manufacture period	Spec
ｱﾝｼｬﾝﾃ	01.1997 - ...	シート スライド

Open full screen picture Up to the top

ZA8737M - frame, lock ZA8737N - frame, lock ZA8737P - frame, lock ZA8741M - knob, lock ZA8741N - knob, lock ZA8852M - lever assembly, seat slide ZA8857M - lever,ｼ-ﾄ ZA8857P - lever assembly, seat slide ZA8857Q - lever assembly, seat slide ZA8857R - lever assembly, seat ZA8961M - knob, device ZA8961N - knob, device

Vanette Serena KVC23
